UL/FM Approved Fire Pump Units & Packages

SIBCA Fire Pump Systems

Engineered for Global Fire Safety Excellence

Introduction to SIBCA

SIBCA Fire Pump Systems represent the pinnacle of fire protection technology, designed to meet and exceed UL 448, FM Global, NFPA 20, and BSI standards. Manufactured in a 40,000 sqm ISO 9001-certified facility in Abu Dhabi, UAE, each pump undergoes 18+ rigorous quality tests, including hydrostatic, performance, and endurance testing, to ensure compliance with global fire safety regulations.

Key Manufacturing Highlights

  • Annual Production Capacity: 5,000+ units.
  • Testing Labs: Equipped with UL/FM-approved dynamometers and flow measurement systems.
  • Sustainability: EPA-listed ozone-safe aerosol technology with zero ozone-depletion potential (ODP).
  • Global Certifications: UL (USA), FM Global (USA), BSI Kitemark (UK), and GCC Standardization Organization (GSO).

Core Values & Commitments

1. Quality Assurance

  • ISO 14001 Environmental Management: Minimizes waste and energy consumption during production.
  • Material Sourcing: Components sourced from EU and US suppliers (e.g., Goulds Pumps for impellers, SKF for bearings).
  • Lifecycle Testing: Simulates 10+ years of operational stress to validate durability.

2. Environmental Responsibility

  • Eco-Friendly Design: Reduces CO₂ emissions by 30% through energy-efficient motors.
  • Recyclability: 95% of pump materials (cast iron, stainless steel) are recyclable.

3. Global Support Network

  • 24/7 Technical Assistance: Teams in 50+ countries, including regional hubs in Dubai, Houston, Frankfurt and Pakistan.
  • Training Programs: Certified NFPA 20/25 training for installers and maintenance crews.

Product Portfolio

1. Centrifugal End Suction Fire Pumps

Design Standard: NFPA 20 | Pressure Range: 50–350 PSI | Flow Capacity: 25–5,000 GPM

Technical Specifications

  • Construction:
    • Casing: ASTM A536 ductile iron with epoxy coating.
    • Shaft: 316 stainless steel, dynamically balanced to ISO 1940 G6.3 standard.
  • Features:
    • Backpull-Out Design: Enables maintenance without disconnecting pipelines.
    • Impeller: Closed-type, laser-balanced for 98% hydraulic efficiency.
    • Seals: Silicon carbide mechanical seals (optional tungsten carbide).
  • Models:
    • Electric-Driven: VES 80-250 (100 HP, 1,500 RPM), VESD 150-100-315 (200 HP, 1,800 RPM).
    • Diesel-Driven: VES 100-200 (300 HP, 2,400 RPM).

Applications

  • High-rise buildings, industrial plants, and water-cooling systems.

2. Centrifugal Split Case Fire Pumps

Design Standard: UL 448 | Pressure Range: 75–600 PSI | Flow Capacity: 500–10,000 GPM

Technical Specifications

  • Construction:
    • Casing: Horizontally split ASTM A48 gray iron.
    • Bearings: Grease-lubricated, double-row ball bearings (L10 life: 50,000 hours).
  • Features:
    • Double-Suction Impeller: Reduces axial thrust, extending bearing life by 40%.
    • NPSH Requirement: As low as 10 ft for reliable suction.
  • Models:
    • High-Pressure: VSC8-150-600 (600 PSI, 8,000 GPM).
    • Industrial: VSP150-360 (360 PSI, 6,500 GPM).

Applications

  • Refineries, power plants, and municipal fire protection systems.

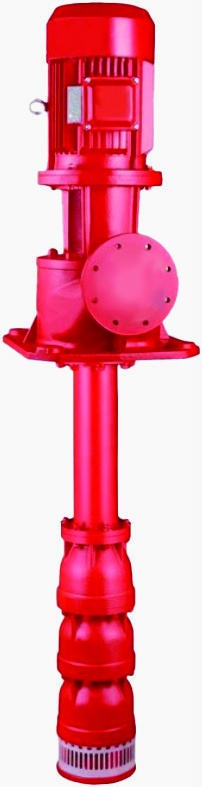

3. Vertical Turbine Fire Pumps

Design Standard: NFPA 20 | Depth Capacity: Up to 300 ft | Flow Capacity: 500–15,000 GPM

Technical Specifications

  • Construction:
    • Column Pipes: Flanged ductile iron with AWWA C110 lining.
    • Bowl Assembly: Bronze-fitted stainless steel for corrosion resistance.
  • Features:
    • Line Shafts: Oil-lubricated (standard) or water-lubricated (optional).
    • Strainers: 3/16″ perforated stainless steel screens.
  • Models:
    • Deep Well: SVT 9.8-15.7 (15.7 HP, 1,750 RPM).
    • High-Flow: SVT 13.4-18.1 (18.1 HP, 3,500 RPM).

Applications

  • Underground reservoirs, marine facilities, and agricultural fire protection.

UL Certification & Compliance

Certification Details

  • UL Mark: Validates compliance with ANSI/CAN/UL 448 for fire pump performance.
  • NFPA 20/25: Guarantees installation and maintenance adherence.
  • Tolerance Limits:
    • Speed: ±4% of rated RPM.
    • Pressure: Must not exceed flange ratings (e.g., 250 PSI for VES 80-250).

Critical Compliance Notes

  • Installation Requirements:
    • Clearance: 36″ around pumps for maintenance access.
    • Foundation: Reinforced concrete base (1.5x pump weight).
  • Annual Testing: Required per NFPA 25 for seal integrity and flow rates.

Why SIBCA Stands Out

1. Cost Efficiency

  • Maintenance Savings: Pre-engineered designs reduce service costs by 25% (e.g., split-case pumps allow impeller access without motor removal).
  • Warranty: 5-year limited warranty on casings and shafts.

2. Innovation

  • Smart Monitoring: IoT-enabled vibration sensors (optional) for predictive maintenance.
  • Customization: Tailored coatings for coastal (salt-resistant) or chemical plant (acid-resistant) environments.

3. Global Case Studies

  • Dubai International Airport: Installed 12 VESD 150-100-315 pumps for terminal fire protection.
  • Texas Oil Refinery: Utilizes VSC8-150-600 split-case pumps with 99.5% uptime since 2020.
